BigQuery

Overview

Sortment lets you access data stored in your BigQuery warehouse and use it to create user schema and audiences.

📘 Connecting Sortment to BigQuery requires some setup in both platforms. It's recommended to set up a service account with the correct permissions in BigQuery before configuring the connection in Sortment.

Connection configuration

To get started, there are 4 main steps to setup the connection:

1. Create a GCP Service Account and configure project permissions

2. Configure dataset permissions

3. Create a BQ dataset to store snapshots

4. Connect your BigQuery to the Sortment

Create a GCP Service Account and configure project permissions

• Navigate to the project where your data is stored, and click on IAM & Admin in the left panel

• Click Service Accounts in the side panel on this page.

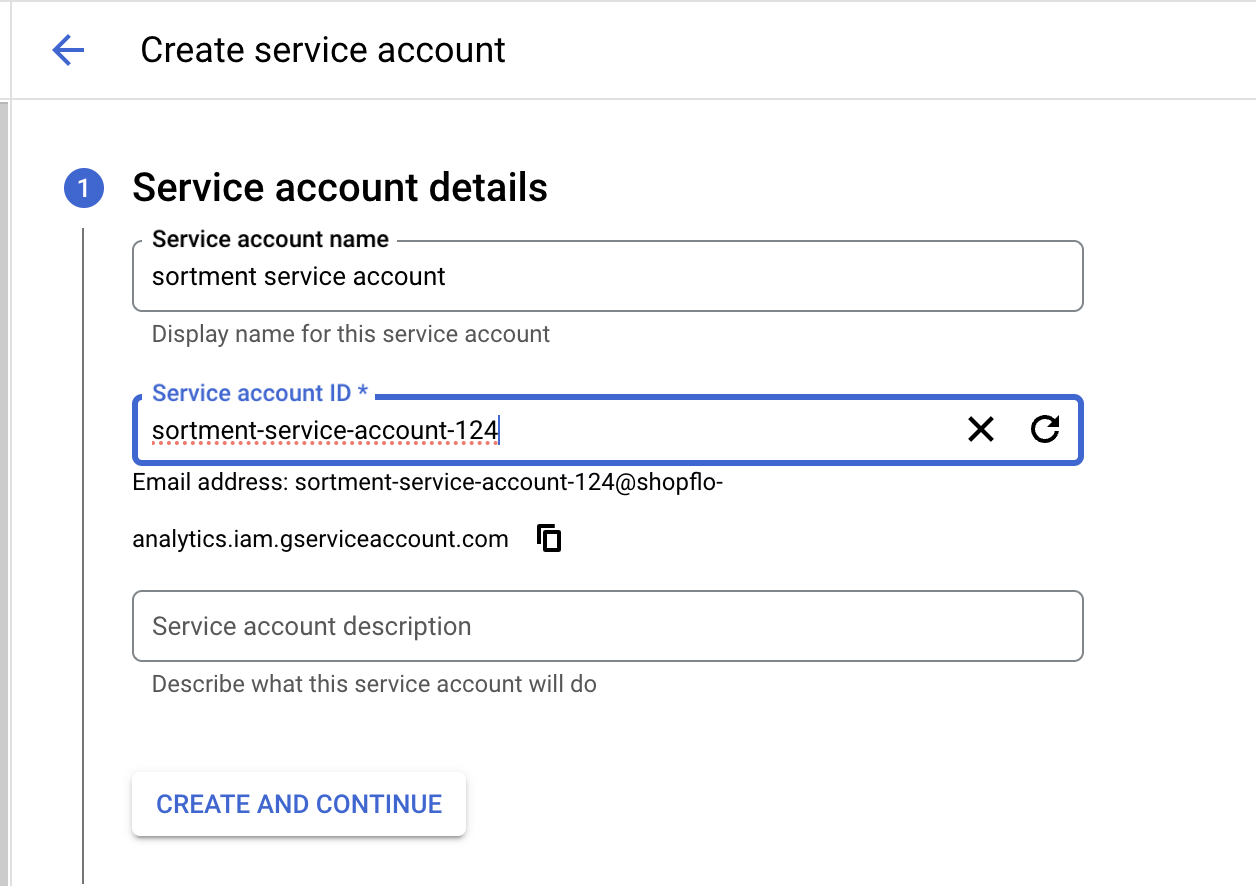

• Create the service account by setting up a name and description

Service account setup

Next, setup following permissions for this account at project level:

• BigQuery Job User

• BigQuery ReadSession User

Step 3 on GCP to add users to this service account is not required for Sortment and can be skipped. Click Done.

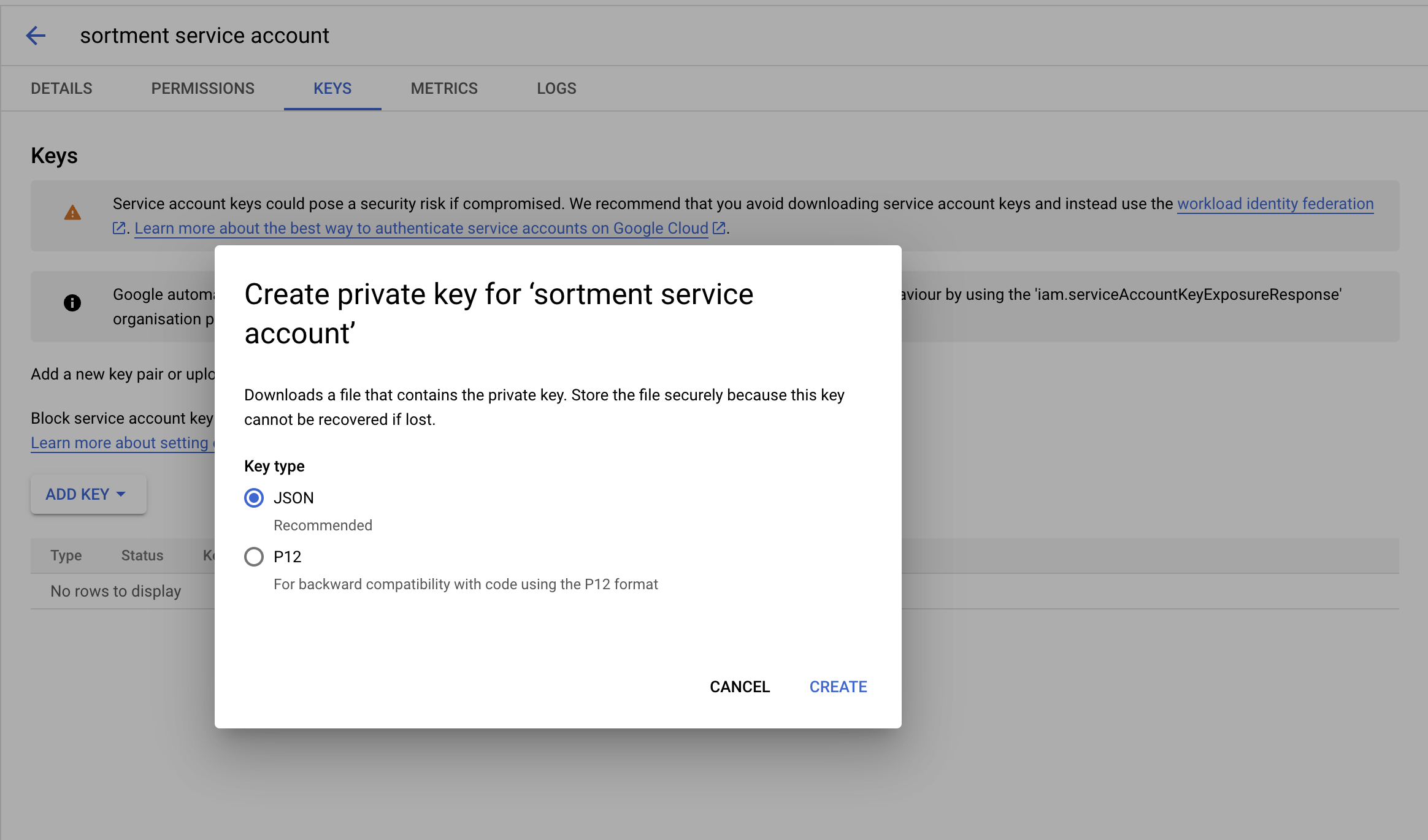

For the created role, navigate to the Keys tab and click Add Key. Choose JSON as the key type. On Create, a JSON file will download to your computer. This will be uploaded to Sortment on the Bigquery page.

Configure dataset permissions

Within your GCP project, navigate to the datasets that you want to connect to Sortment. You can connect tables from different datasets, as long as the joins exist within the same dataset, and the service account has permissions for each dataset the tables are a part of.

To give read access to the datasets to the service account, follow these steps:

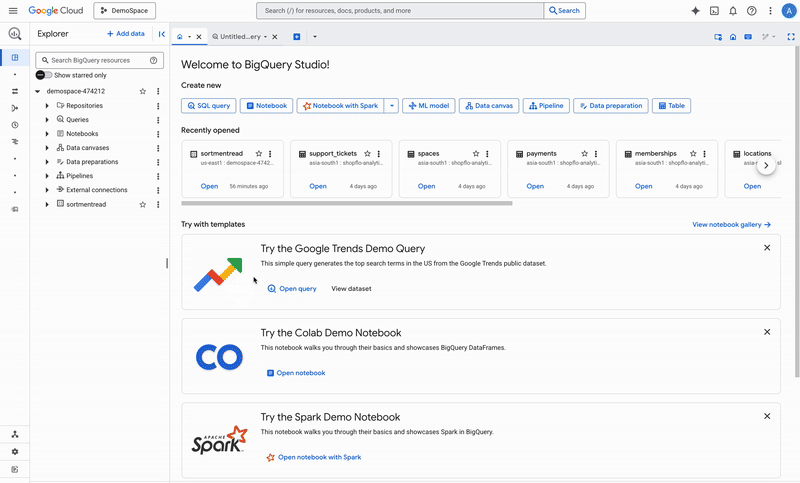

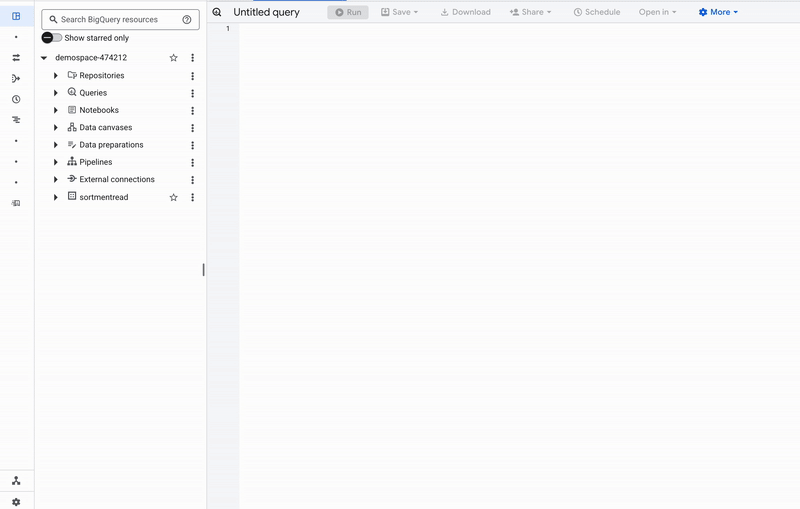

1. In your project, and click on Bigquery in the left panel, then click Bigquery Studio in the dropdown.

2. Click on the three vertical bubbles next to the dataset that you want to connect to the application.

3. Click Share, then manage permissions. On the side panel, click on Add Principal button.

4. Add the service account created earlier and add following permissions and role:

   1. Bigquery Data Viewer role

   2. bigquery.tables.list ⁠ permission

   3. bigquery.datasets.get permission

5. Save the setup

Create a BQ dataset to store snapshots

Sortment manages the audience and campaigns data in your warehouse by creating respective tables. These tables will be stored in the dataset where Sortment has write access. It is recommended to create a new dataset for Sortment. Follow these steps to create a new dataset with respective permissions:

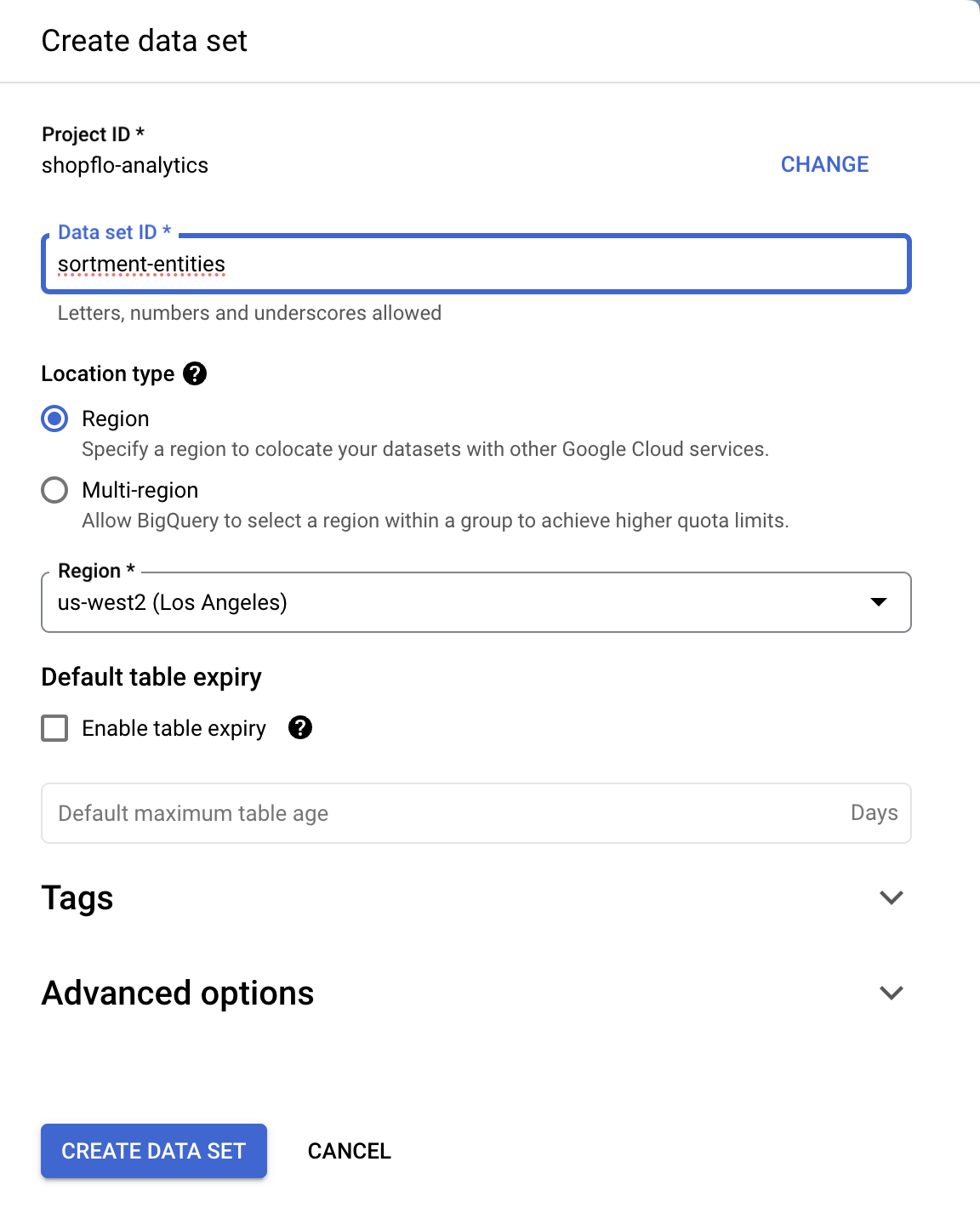

• In the respective project, click on three vertical bubbles and click Create new dataset.

• Set Dataset ID and set respective region. Copy this name to add to Sortment Bigquery form later.

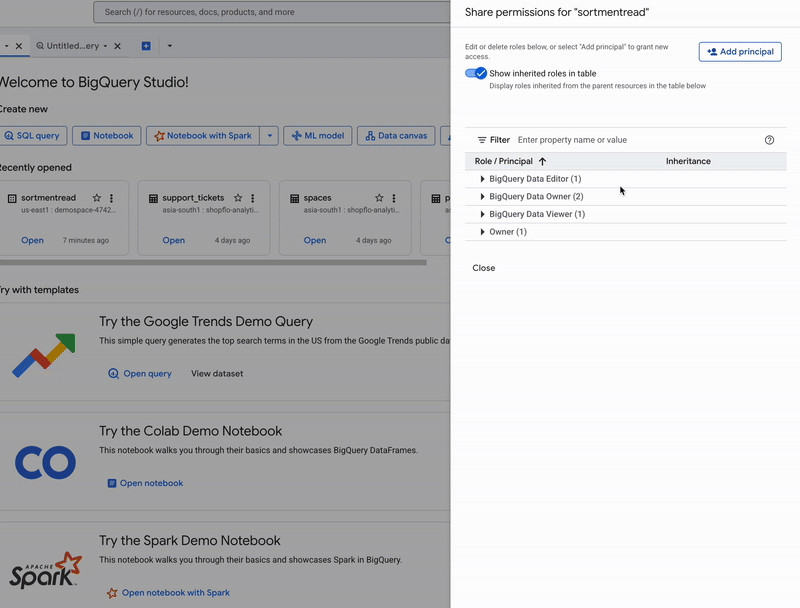

• Once the dataset is created, click Share, then manage permissions. On the side panel, click on Add Principal button.

• Add the service account created earlier and add Data Owner permission and save.

Create dataset for sortment to write into

Now, enter the following required fields into Sortment:

• Project ID: This is the unique identifier for your GCP project on Google Cloud. You can find this in GCP console.

• Location: This is the region of your BigQuery datasets.

• Dataset: The is the dataset that Sortment will use to write data back in BigQuery.

• Key File: This is the service account JSON file that gives Sortment access to certain tables and schemas in BigQuery.

Test connection

When setting up a source for the first time, Sortment validates the following:

• Network connectivity

• BigQuery credentials

• Permission to list schemas and tables

• Permission to write to the schema

All configurations must pass them for uninterrupted access to Sortment. Some sources may initially fail connection tests due to timeouts. Once a connection is established, subsequent API requests should happen more quickly, so it's best to retry tests if they first fail. You can do this by clicking Continue again.

If you've retried the tests and verified your credentials are correct but it is still failing, reach out to [e-mail]

Tips and troubleshooting

Request Prohibited: VPC Service Controls Error: May occur if VPC Service Controls are enabled for the project. The serivce account needs to be whitelisted to resolve this error.

If you encounter an error or question not listed here and need assistance, don't hesitate to reach out. We're here to help.

Connection timeout

When initially testing your connection, you may receive a connection timeout error. Once a connection is established, subsequent API requests should happen more quickly, so it's best to retry the tests if they first fail. You can do this by clicking Continue again.
